Tatra V0.5 with M/A gearbox

Image:

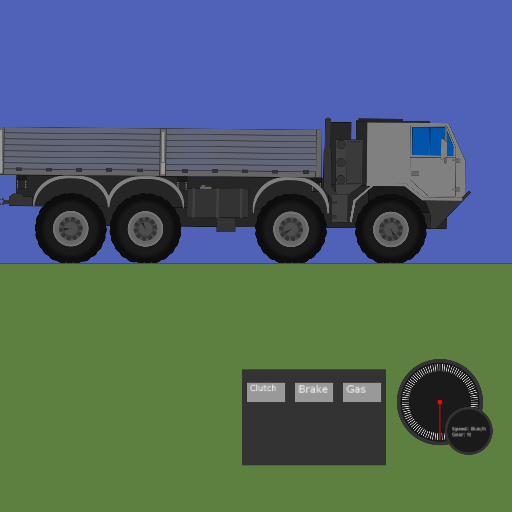

screenshot of the scene

Author: JakubKubo

Group: Technical

Filesize: 2.46 MB

Date added: 2017-08-16

Rating: 5.9

Downloads: 8461

Views: 1129

Comments: 8

Ratings: 3

Times favored: 0

Made with: Algodoo v2.1.0

Tags:

Scene tag

New gui, new engine, new gearbox and new adjustable suspension.

Controls:
- Up arrow - gas
- Right - clutch
- Down - brake
- Shift/Ctrl - gear Up/Down
- NumPad 1/7 - tire pressure (to deactivate Soft-wheel, set it to "4")
- NumPad 2/8 - spring constant (adjust to load)
- NumPad 3/9 - spring damping (small is good to climbing, high is good to down-hill)

Engine: Spring (NOT the negative damping!)
- Spring read flywheel angle and retract spring if angle is negative and vice versa

Gearbox: Auto/Manual 8+R
- Click on Manual/Auto text on dashboard to change gearbox type
- 3-stages, short-gears
- Uses array of gear ratios

Wheels:
- 24-segment soft-wheels with counter-weight

Notes:
- Real truck have 13,5 t and can carry 24,5t but 38t will probably break algodoo
- Warranty void if going faster than 225Km/h!
- Did i mention new brakes?
- Scene now runs at 60 Hz
Last edited at 2017/08/20 14:07:49 by JakubKubo
Please log in to rate this scene
edit
Similar scenes
Title: Tatra 815 8x8 V0.3
Rating: 5
Filesize: 250.91 kB
Downloads: 1005
Comments: 0
Ratings: 1
Date added: 2016/10/29 18:06:59
Made with: Algodoo v2.1.0
Rating: rated 5
download
Title: Tatra T815+trial Course
Rating: 6.8334
Filesize: 2.87 MB
Downloads: 1707
Comments: 5
Ratings: 6
Date added: 2011/05/12 12:49:40
Made with: Phun
Rating: rated 6.8
download
Title: tatra new 2_0000
Rating: 5
Filesize: 273.77 kB
Downloads: 742
Comments: 0
Ratings: 1
Date added: 2013/11/12 10:22:53
Made with: Algodoo v2.1.0
Rating: rated 5
download
Title: Tatra 815 1.1 (with Rocket pod)
Rating: 5
Filesize: 261.16 kB
Downloads: 667
Comments: 0
Ratings: 1
Date added: 2011/01/08 17:38:53
Made with: Algodoo before v1.8.5
Rating: rated 5
download
Title: UAZ 452 (Spring engine, gearbox)
Rating: 4.75
Filesize: 141.54 kB
Downloads: 1476
Comments: 1
Ratings: 2
Date added: 2014/07/06 15:08:39
Made with: Algodoo v2.1.0
Rating: rated 4.8
download
Title: with gearbox for (Algobot5000)
Rating: 5
Filesize: 90.52 kB
Downloads: 794
Comments: 1
Ratings: 1
Date added: 2013/03/30 08:11:05
Made with: Algodoo v2.0.1 Edu
Rating: rated 5
download
This scene is a response to:
Title Author Rating Downloads Comments Date added
Tatra 815 8x8 V0.3 JakubKubo 5 (1 vote) 1005 0 2016/10/29 18:06:59
show grid
Very good one!
Yoo just forget to set follow object.
I manage to brake it down (wheels on top of body) /-)
Kilinich write me "Very good one!", I´m so proud of myself :coolgrin:
Thanks for responding _o_
Can you help me? First gear is slipping because of HUGE torque (that is needed for climbing), how can i fix that?
The scene in its entirety is good, but the mechanical part is somewhat questionable. your way of making the engine simply gets the fun out of it, and probably behaves linearly, so it would be like an electric motor. And all of the gears slip. This is because you're running the scene at 60 Hz, and because the gearbox is composed of two smaller gearboxes. Use 120 and it may work better, but the thing that will really fix this is making it have only one contact point, i.e. only two gears.

Also, now that we have the negative adhesion concept, I guess you should try that. They run at like 5 or 6 times the speed than the engines we use right now, so they have like 5 or 6 times less torque too, which is perfect since you can add a 10:1 gearing made of C-gears or something like that on the output of the gearbox, and the gearbox itself would not slip.

And what was that about widgets??
- I don´t know if it is only for me but this scene runs at 50-70% speed at 60Hz so 120Hz sounds impossible
- Is that engine bad? I put it on my dyno with graph and it hade non-linear curve. I think that this type of spring engine need new name:bonk:
- Is two-whelled gearbox better than multi-stage? Even if wheel will be huge? (i make this gearbox to fit that box, which have approx. real size)
- I´m using +inf friction and +inf adhesion to gearboxes (adhesion prevent wheels from detaching at high torque)
- I´m not good at making combustion engines, but i can give it a try
Last edited at 2017/08/20 14:20:58 by JakubKubo
- About widgets, i will create a topic on algo.boards.net to discuss it, ok?
Last edited at 2017/08/20 14:02:02 by JakubKubo
I think the scene ran ok, but still, your slipping problems come mainly from there

The engine is not bad, it's just too simple for an engine, and at the same time too overcomplicated for what it actually is. The point of making engines in Algodoo is to give the scene another challenge, otherwise you just drive a car through a 2d terrain thingy... for example I seemingly invented that type of engine with the springs that change length (my 5th scene I think [Don't look please]) but at least I used pistons.

And now that we have adhesion I have the theory that you can simply make a 5k RPM engine and hook it up to a low torque gearbox like the one I made, then add a fixed reduction at the output of the gearbox made of torque-withstanding gears like C-Gears. This way the gearbox is withstanding roughly 5 to 8 times less torque than before.
vyborný:D uploadnu muj 8x8 at se taky pochlubim, azdopadne davam 10/10 výborny řešení motoru, a bodíky jsou exlusivní:)
http://www.algodoo.com/algobox/details.php?id=167908
i made it to the end but there are nothing there and my tires doesn,t poek thourht the truck
