4 bit adder with logic gates

Image:

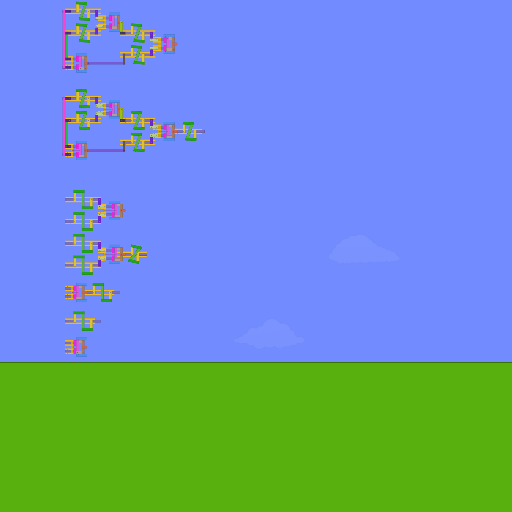

screenshot of the scene

Author: WESTRNMONSTR

Group: Default

Filesize: 27.91 kB

Date added: 2023-08-13

Rating: 5.6

Downloads: 1606

Views: 354

Comments: 15

Ratings: 2

Times favored: 0

Made with: Algodoo v2.1.0

Tags:

Scene tag
I have started messing around with logic in Algodoo and i have made this adder which is 4 bit. it has no cin on cout, hovever, i am planning to add that. (Credit to UnityDogGaming04 for the logic gates) use number keys to turn on lasers
