Tesla Valve Pump

Image:

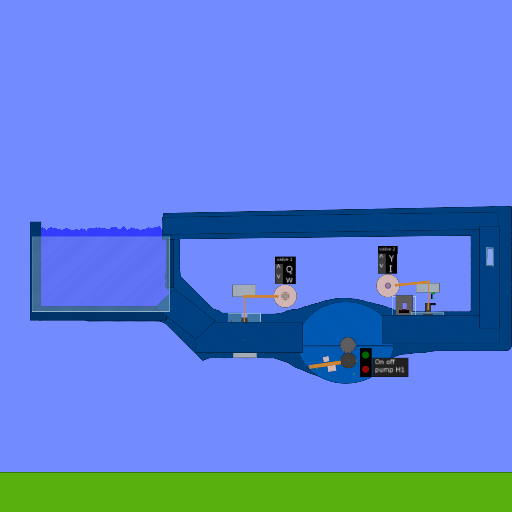

screenshot of the scene

Author: Jimmyfisherman

Group: Default

Filesize: 28.57 kB

Date added: 2014-08-19

Rating: 5

Downloads: 1334

Views: 562

Comments: 2

Ratings: 1

Times favored: 0

Made with: Algodoo v2.1.0

Tags:

Scene tag
A mechanical water pump using Tesla's Valve as the pistons. Using two pistons allows for a two-stage pumping action, where the bottom piston pumps most of the water, and the top piston adds a second pumping stroke to smooth the outflow (so it pulsates less). The pump doesnt actually work because its too big. My cpu can't handle rendering enough water for it to pump. Post a comment if you made it pump water successfully.
